SUPAJET 18 AE
SUPAJET 18 AE
The ultimate pump for ease of use. Ultra tough and reliable this lightweight 18HP unit will exceed your expectations.
Key Features
EASY TO USE CONTROL PANEL
A stainless steel control panel houses the operating controls making ease of use from one location.
EXHAUST PRIMER
The simple, fast and efficient exhaust primer is low maintenance. Built to handle the pressure, an easy 2-step operation enables the firefighter to start pumping operations in minimal time. Letting you focus on the job, not on your equipment. This is the way technology should be.
ROBUST PUMP DESIGN
Phoenix SupaJet pumps use only the highest grade of aluminium, CC601 Marine grade heat treated to T6 hardness for the ultimate in strength and durability.

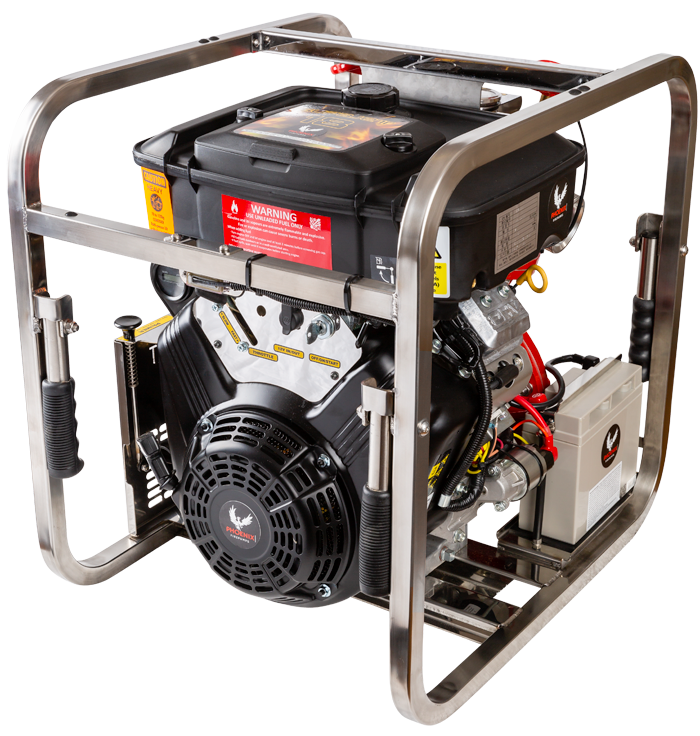

STAINLESS STEEL FRAME WITH FOLDAWAY HANDLES
The Supajet 18 features a robust stainless steel (304 grade) full cage carry frame for better protection of the pump and engine components. Carry handles are fitted with comfortable rubber-hand grips and fold away when not in use.
FEATURES AND SPECIFICATIONS

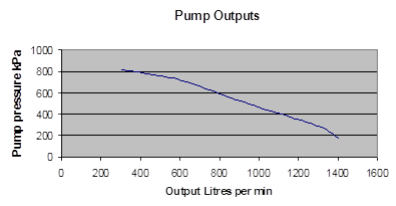

The Ultimate Pumping Power
At Phoenix we understand that pump output and performance are critical for our customers, so we make that our priority.
Engine SPECIFICATIONS
Engine Series:
Briggs & Stratton Model 356447
Description:
Vanguard V-Twin air-cooled 4 Cycle Overhead valve
Displacement:
570cc
Type:
4 cycle
Lubrication:
Full Pressure lubrication
Starting:
12 volt electric starter with Manual Recoil
Fuel Tank:
Integral 9 Litre – 1.5 hours run time
Battery:
12 volt VRLA
Maximum Power:
Maximum output 18HP @ 3600 RPM
Pump SPECIFICATIONS
Type of Pump Transfer:
Combination: Pressure/Volume
Intake:
4” (100mm) BSRT or 3-1/2” (75mm) FMBSP
Discharge:
Twin 2-1/2” (64mm) MBSP Globe Valves
Volute Body:
CC601 Marine Grade Aluminium Heat Treated to T6 condition
Impeller:
CC601 Marine Grade Aluminium
Optional LG2 Bronze available
Wear Rings:
Long Wearing Acetyl, Economical to replace.
Shaft Seal:
Spring Loaded Carbon Ceramic
Priming:
Exhaust Eject, will prime 3 metres in 21 seconds & up to 6m
Frame Type:
Full Wrap Around Stainless Steel
Operating Controls
All the Operating Controls and Instrumentation are located in one area making it easy to read and operate:
FEATURES
- Engine ON/OFF/START switch
- 12 volt INLET/OUTLET Socket
- Engine Hours Run Meter
- Throttle Control
- Choke Control
- Primer Actuator
- Pump Pressure Gauge
- Pump Compound Gauge
- LED Panel lighting
DIMENSIONS
Focus on the job, not on your equipment.
Phoenix Firepump is technology you simply won’t need to worry about.
This is the way technology should be.
